Precision manufacturing / fictional demo plant

Tolerance: ±0.002mm. Excuses: zero.

GRIDWORKS produces tight-tolerance metal components for automation cells, mobility platforms, and industrial robotics. Every quote is built from process capability, inspection strategy, and delivery risk before a spindle turns.

Send RFQ View capabilities

0M ANNUAL OUTPUT

0 PPM DEFECT RATE

0% ON-TIME DELIVERY

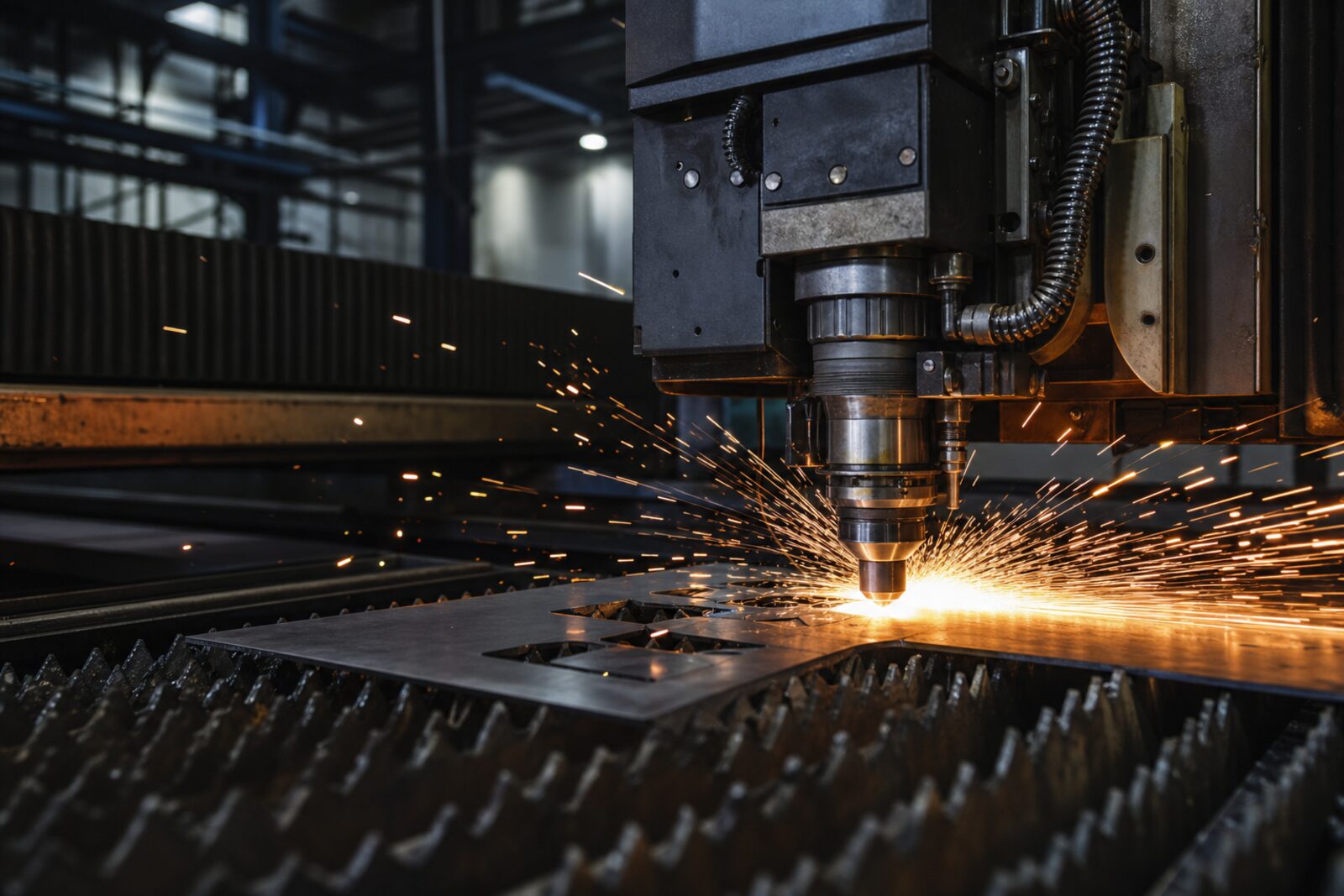

Precision manufacturing cell with fixtures, CNC equipment, and orange safety markings — DATUM A / 0.002 MM REPEAT

Line control

Six gated steps, one horizontal production line.

Engineering workstation reviewing fixture drawings

LINE 1 / DESIGN

Design

Manufacturing engineers convert prints into fixture strategy, GD&T callouts, and in-process inspection gates.

CAD/CAM: NX / Mastercam
DFM gate: 24 hr
Datum plan: ASME Y14.5

CNC machining line cutting aluminum housings

LINE 1 / CNC

CNC

Lights-out 3-axis and 5-axis cells cut aluminum, stainless, tool steel, and titanium with tool-life logging.

Envelope: 850 x 520 x 410 mm
Repeatability: ±0.004 mm
Spindles: 18k / 30k rpm

LINE 1 / WELDING

Welding

Robotic TIG and laser weld stations hold structural assemblies inside controlled heat-input windows.

Process: TIG / laser
Fixture datum: ±0.03 mm
Traceability: Lot + operator

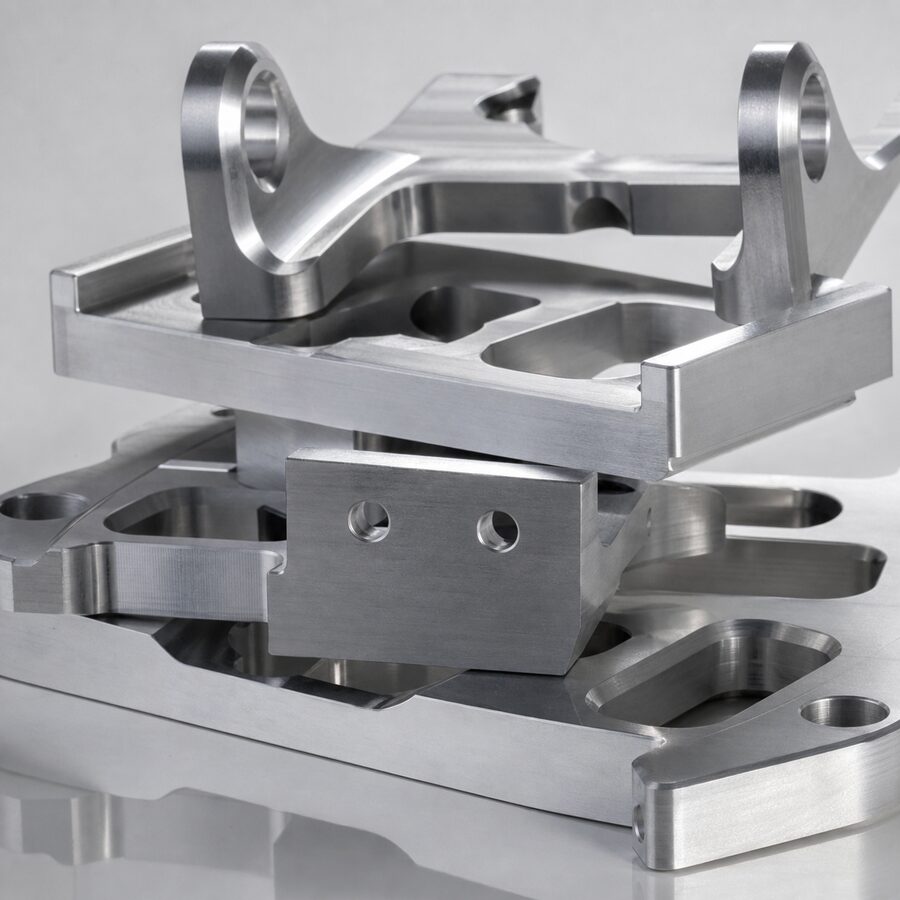

Surface finishing line with prepared machined parts

LINE 2 / SURFACE

Surface Treatment

Anodize, passivation, electropolish, zinc nickel, and powder coat runs are tied to traveler records.

Thickness: 5-55 micron
Salt spray: 96-720 hr
Color match: Delta E tracked

Quality technician inspecting precision parts

LINE 2 / QA

QA

CMM, optical inspection, surface roughness, and first-article reports are released before packaging.

CMM accuracy: 1.7 + L/333 um
FAI format: AS9102 style
Records: 10 yr archive

Finished industrial components staged for shipment

LINE 2 / DISPATCH

Dispatch

Serialized cartons, VCI packaging, and customer-specific labeling keep line-side receiving predictable.

Packout: VCI / foam cell
Labeling: 2D lot code
ASN: EDI capable

Equipment list

Machines selected for stable process windows.

Equipment	Count	Machining Range
Makino D500 5-Axis CNC	08	X500 / Y450 / Z400 mm, 30k rpm, palletized automation
DMG MORI NHX 4000 Horizontal Mill	12	630 mm pallet, steel and cast iron production cells
Okuma Genos L3000 Turning Center	10	Ø340 x 500 mm, live tooling, bar-fed repeat work
Trumpf TruLaser Weld Cell	04	0.6-8.0 mm sheet and machined assembly joining
Zeiss Contura CMM	06	700 x 1000 x 600 mm, temperature-controlled metrology

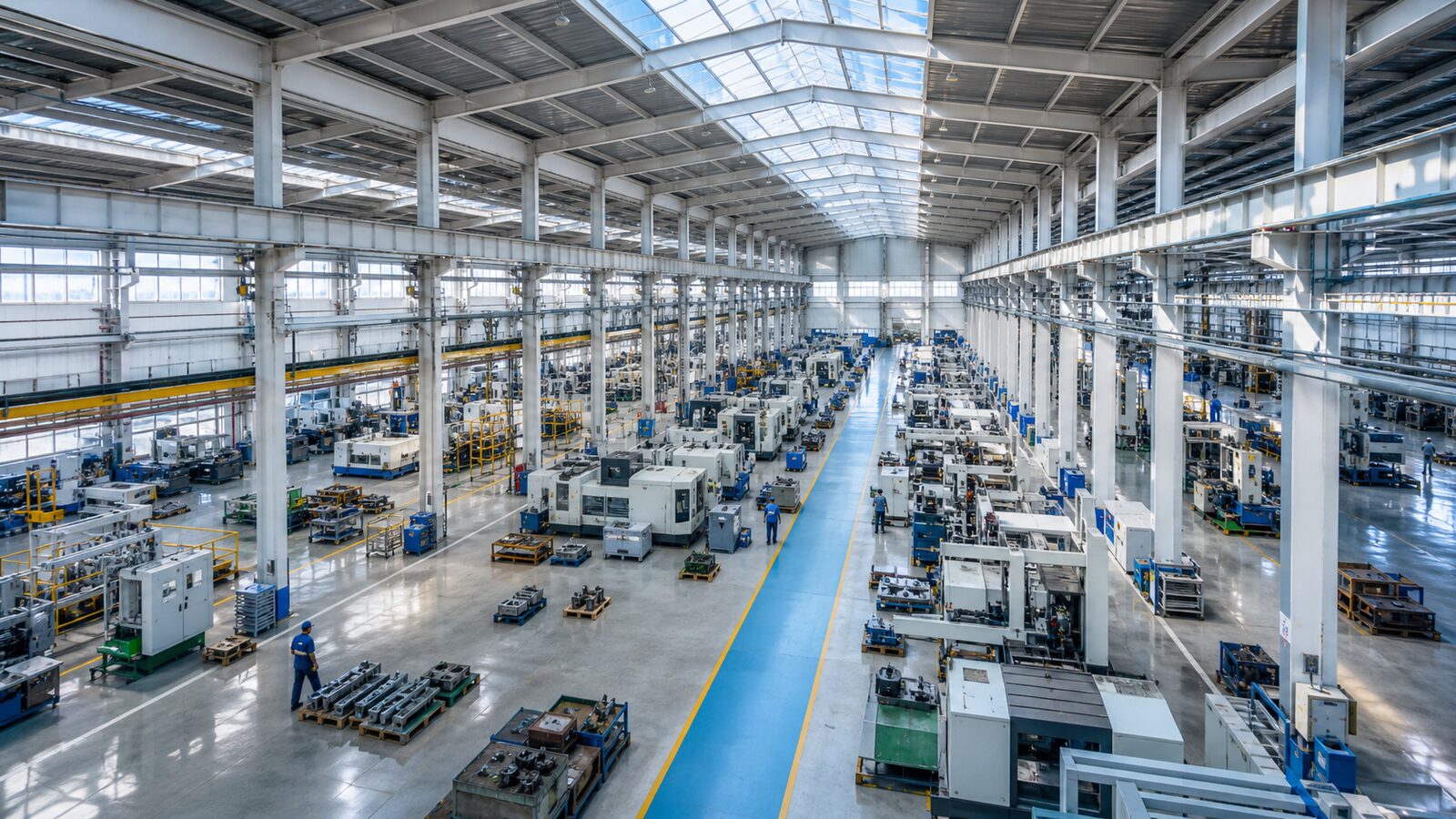

Wide view of a precision manufacturing plant floor

GRIDWORKS / PLANT WIDE

Plant specification

Built for repeat production, not heroic one-offs.

Temperature-controlled machining halls, isolated metrology rooms, and line-side material staging keep variation visible before it becomes scrap.

18,400 m2Manufacturing floor

22 C ±1 CMetrology control

42 cellsAutomated work centers

24/6Scheduled production

Certification badges

Quality systems mapped to industrial customers.

ISO 9001 QUALITY MANAGEMENT SYSTEM

ISO 14001 ENVIRONMENTAL MANAGEMENT

IATF 16949 AUTOMOTIVE PROCESS CONTROL

Quality philosophy

Inspection is a process input, not a final apology.

GRIDWORKS defines control plans during quoting, validates them at first article, and keeps dimensional evidence attached to every production lot. Operators see live SPC limits at the cell, while QA owns release authority.

Every critical feature receives a measurement method before purchase order acceptance.

Nonconformance review requires root cause, containment, and verified corrective action.

Customer drawings, revisions, and inspection records stay linked through serialized travelers.

Quality inspection bench with precision measuring equipment

GRIDWORKS / QA VISUAL

Request for quote
